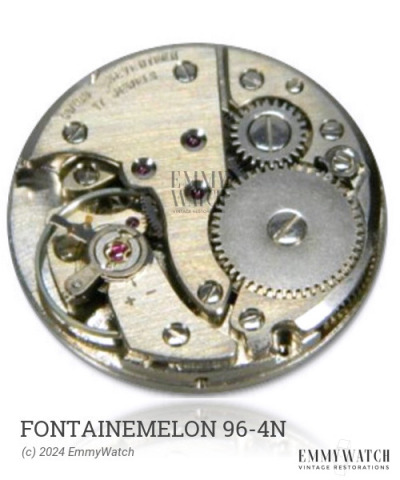

The Fontainemelon 96-4N is an open face calibre watch movement that was used from 1914 onwards. It features a bimetallic screw balance and offers options for a Beguet hairspring and Reed's regulator. The movement includes an early two-section regulator for coarse and fine adjustment. Its functions include stem winding and setting, sub-second display, and is powered by a mechanical movement.
The Fontainemelon 96-4N features the following functions:
| Ronda Reference # | Shock System | Buy |
|---|
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.115 x 440 x 11.5 mm | GR4532 | Manual | Buy mainspring |
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| BALANCE COMPLETE | 721/LON 17.89M | Buy part | |
| JEWEL, LOWER CAP | 330/LON 17.89M | Buy part | |
| MAINSPRING 1.50-.20-457 | MSN-1781 | GR 4532 | Buy part |
| MAINSPRING, TONGUE 6X3.5X16.5 | MSN-314 | GR 4350-TB | Buy part |
| MINUTE WHEEL | 260/LON 18.89M | 260/LON 18.89M | Buy part |
| SCREW. LOWER CAP JEWEL | 5330/LON 17.89M | Buy part | |
| STAFF | 100/516 | 723/LON 17.89 | Buy part |
| STEM, TAP 2 31.8MM O/A | 200/1281F | 401/LON 1889M | Buy part |
