Fontainemelon 74-4
(Font)
Jewels: 15
Frequency: 18000 vph
Type: Manual Wind
Period used: 1915-1917
Diameter: 27.94 mm

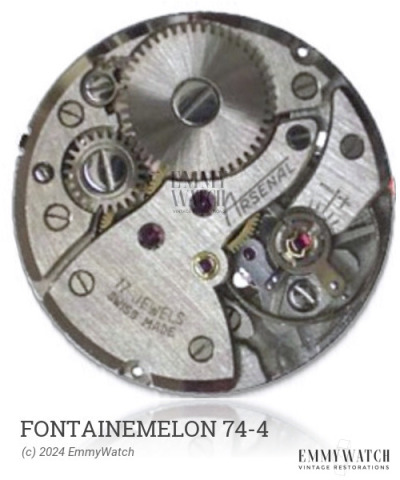

The Fontainemelon 74-4 watch movement, produced between 1915 and 1917, features an open face calibre and belongs to the model 5 series. It is equipped with a bimetallic screw balance and a Breguet hairspring. The movement also incorporates a negative stem mechanism. Although it shares similarities with the model 3 and 7, including a 0 size and a smaller base plate, the specific differences between these models are not specified. In terms of functionality, the Fontainemelon 74-4 movement offers stem winding and setting, as well as a sub second display.
The Fontainemelon 74-4 features the following functions:
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| CENTER WHEEL | 1918/ELG | Buy part | |
| JEWEL, UP/LOW BALANCE HOLE | X455/ELG (use 12BB/12) | X455/ELG | Buy part |
