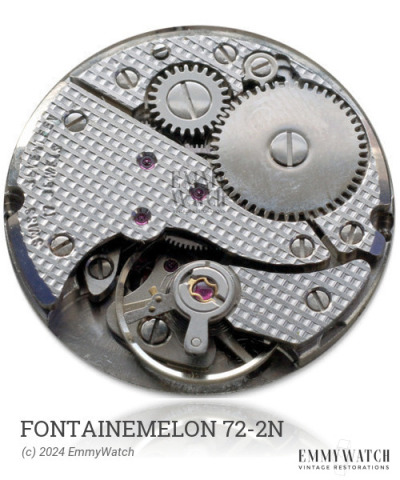

Fontainemelon 72-2N
(Font)
Ligne: 16'''
Jewels: 15
Power Reserve: 32 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Diameter: 36.1 mm
Height: 4.15 mm
Hands: 1.80 x 1.00 / 0.28 mm
The Fontainemelon 72-2N is an open face calibre watch movement, similar to the 1054, 1067, 1068, 1087, 1148, 1369, and 1379 models. The movements share common features such as varying bridge layouts, crown-wheel bearings, and clicks. The 1052 movement offers functions including stem winding and setting, as well as sub-second indication. It was in use around the year 1945.
The Fontainemelon 72-2N features the following functions:
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 230 | Ordinary/None | Buy staff |
| 179 | Ordinary/None | Buy staff |
| 231 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.160 x 460 x 14.0 mm | GR5031 | Manual | Buy mainspring |
| 1.70 x 0.170 x 460 x 14.0 mm | GR5047 | Manual | Buy mainspring |
| 1.70 x 0.160 x 430 x 14.0 mm | Manual | Buy mainspring | |
| 1.70 x 0.155 x 380 x 12.5 mm | GR5020 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
