Fontainemelon 71
(Font)
Ligne: 11.5'''
Jewels: 15/17
Power Reserve: 37 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1950
Diameter: 26 mm
Height: 5.05 mm
Hands: 1.30 x 0.90 x 0.22 mm

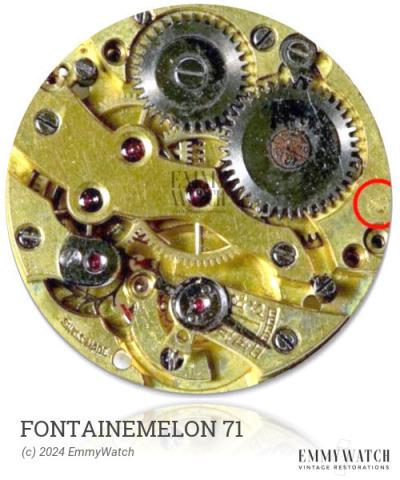

The Fontainemelon 71 watch movement is a manual wind mechanical movement with a sweep second hand and pin lever escapement. It features a ratchet on the dial side and a crown mechanism with a rocker bar. The specific differences between the 1405 and 1495 models are not known. The 1495 movement was in use around 1950.
The Fontainemelon 71 features the following functions:
- Manual Winding
- Pin lever
- Sweep Seconds
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.80 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
