Fontainemelon 701-2
(Font)
Ligne: 17'''
Jewels: 7/15
Power Reserve: 36 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1940
Diameter: 38.35 mm
Height: 3.5 mm
Hands: 1.80 x 1.00 / 0.26 mm
Base: A. Schild 1073

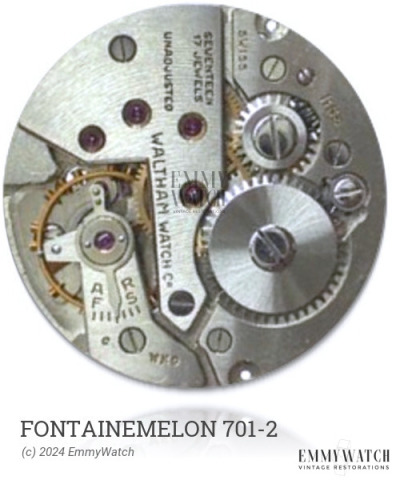

The Fontainemelon 701-2 open face calibre watch movement was produced around 1940. A variant of this movement was created with a skeletonized base plate and 7 jewels for promotional purposes by Girard-Perregaux in collaboration with Shell. The movement features stem winding and setting, a sub-second function, and brass bearings.
The Fontainemelon 701-2 features the following functions:
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.170 x 410 x 14.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
