Fontainemelon 65
(Font)
Ligne: 18'''
Jewels: 15
Lift Angle: 44°
Power Reserve: 36 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Diameter: 40.6 mm
Height: 5.2 mm
Hands: 1.85 x 1.00 / 0.20 mm

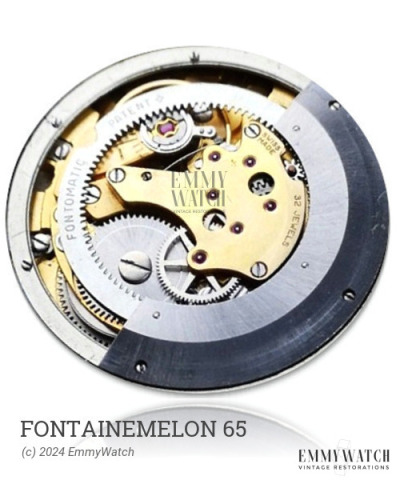

The Fontainemelon 65 is an open face calibre mechanical watch movement that features the option for a Breguet hairspring. This movement is capable of stem winding and setting, as well as displaying a sub-second hand. The Fontainemelon 65 was predominantly used around the year 1945.
The Fontainemelon 65 features the following functions:
- Stem wind and set
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.90 x 0.170 x 460 x 14.0 mm | GR5608 | Manual | Buy mainspring |
| 1.70 x 0.170 x 460 x 14.0 mm | GR5047 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| MAINSPRING 1.70-.17-460 14 | MS-86R | GR 5047 | Buy part |
| PALLET ARBOR | 72S/130P | 714/ALP 355 | Buy part |
| ROLLER 290X120X54 | 82S/136R | Buy part | |
| STAFF, REG/INCA | 100/3B | Buy part | |
| STEM | 200/1052F | Buy part |
