Fontainemelon 216
(Font)
Ligne: 18'''
Jewels: 16
Lift Angle: 42°
Power Reserve: 35 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1975
Diameter: 40.75 mm
Height: 4.85 mm
Hands: 1.80 x 1.00 / 0.30 mm

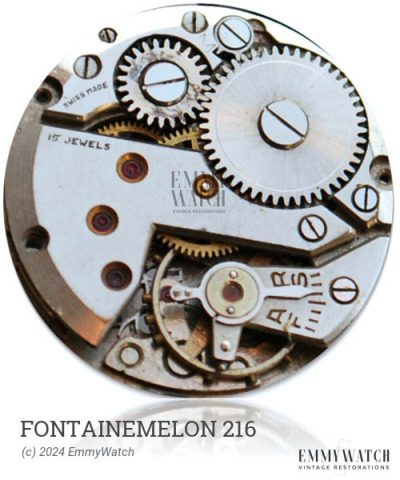

The Fontainemelon 216 is an open face calibre watch movement with differing dimensions compared to other registers of its time. It is a stem wind and set movement featuring a sub-second function. The X40 is known to have been used during the approximate period of 1975.
The Fontainemelon 216 features the following functions:
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.90 x 0.190 x 500 x 15.5 mm | GR5644 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
