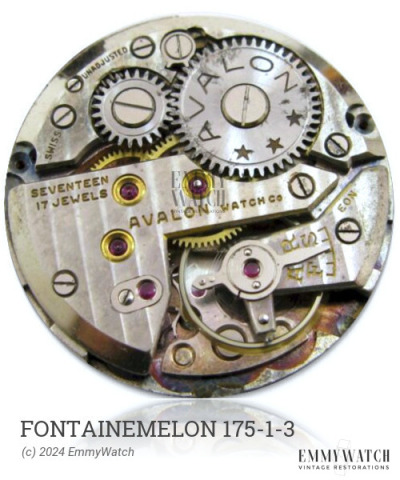

Fontainemelon 175-1-3
(Font)
Ligne: 12'''
Jewels: 15/17
Power Reserve: 43 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1960
Diameter: 27 mm
Height: 3.5 mm
Hands: 1.50 x 0.80 / 0.21 mm
The Fontainemelon 175-1-3 is a manual wind watch movement with sub-second functionality. It is often or always denoted as 1120 on the dial side. It falls within a series of movements (including 1120, 1122, 1124, 1126, 1128, 1130, 1132, 1138, and 1288) for which specific differences are not known. The Fontainemelon 175-1-3 was utilized in watches during the period around 1960.
The Fontainemelon 175-1-3 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.130 x 320 x 10.5 mm | GR4196 | Manual | Buy mainspring |
| 1.50 x 0.130 x 300 x 10.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
