Return To ShopWatch Database

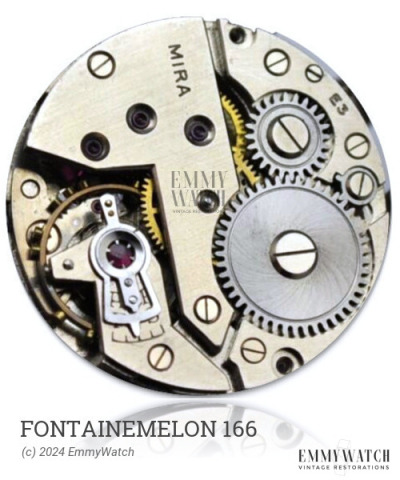

Fontainemelon 166
(Font)
Ligne: 12.5'''
Jewels: 17
Power Reserve: 46 hrs
Frequency: 19800 vph
Type: Manual Wind
Period used: ~1972
Diameter: 28.4 mm
Height: 3.15 mm
Hands: 1.50 x 0.90 x 0.20 mm
The Fontainemelon 166 watch movement, developed specifically for the Ocean Star series, shares its technical details with the Mido 1147OC movement. The movement is manually wound and features a sweep second hand. The date function can be adjusted by changing the 20-24 hour indication. This movement incorporates a sweep seconds function and was commonly used around 1972.
The Fontainemelon 166 features the following functions:
- Date: set by changing 20-24h
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.00 x 0.120 x 10.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
