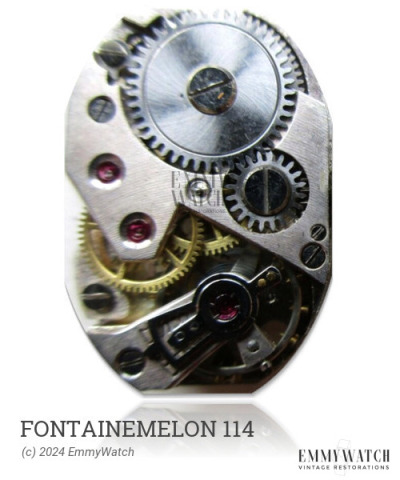

Fontainemelon 114
(Font)
Ligne: 11.5'''
Jewels: 15
Power Reserve: 36 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1934
Diameter: 25.6 mm
Height: 4.3 mm
Hands: 1.20 x 0.80 / 0.20 mm
The Fontainemelon 114 watch movement features a larger base plate compared to the Felsa 294. However, the specific differences between the Fontainemelon 114, Felsa 309, and Felsa 314 are unknown. This movement supports manual winding, includes a sub-second function, and was commonly used around 1934.
The Fontainemelon 114 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.65 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring | |
| 1.60 x 0.095 x 320 x 9.0 mm | GR4477 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
