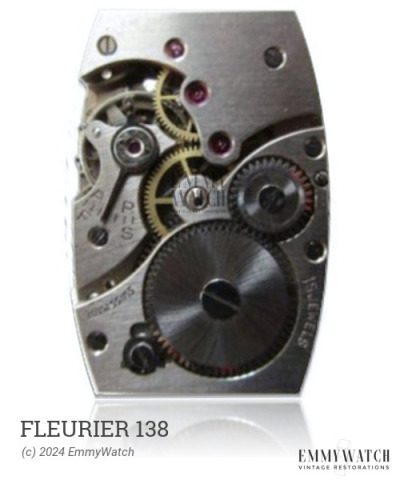

The Fleurier 138 watch movement, produced between 1930 and 1947, had a total production of 69,000 units. It features a bimetallic screw balance and incorporates a Breguet hairspring. From 1943 onwards, an option for Incabloc was made available. The movement functions with manual wind and includes a sub second display.
The Fleurier 138 features the following functions:
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 1348 | Ordinary/None | Buy staff |
| 1352 | Ordinary/None | Buy staff |
| 3840 | Incabloc | Buy staff |
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.115 x 340 x 10.0 mm | GR3716DB | DB | Buy mainspring |
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| ARBOR, BARREL | 195/324 | 8315/IWC 83 | Buy part |
| BARREL | 182/260 | 8301/IWC 83 | Buy part |
| CANNON PINION, HT 2.36 | 240/512 | 8361/IWC 83 | Buy part |
| CLICKSPRING COMBO | 434/52 | 8324/IWC 83 | Buy part |
| CLUTCH LEVER SPRING | 440/256 | Buy part | |
| CLUTCH WHEEL | 407/305 | 8319/IWC 83 | Buy part |
| ESCAPE WHEEL, S/S | 705/362 | 705/362 | Buy part |
| FOURTH WHEEL, W/SECOND | 224/171 | 224/171 | Buy part |
| HOUR WHEEL | 250/IWC 83 | Buy part | |
| MAINSPRING 5X9.5X13 DB&H | MSS-W183 | Buy part | |
| PALLET ARBOR | 72S/96P | 714/FEL 345 | Buy part |
| ROLLER 220X95X42 | 82S/102R | Buy part | |
| SCREW, CROWN WHEEL | 5420/202 | Buy part | |
| SCREW, SET LEVER | 5443/386 | Buy part | |
| SET BRIDGE | 445/328 | 445/328 | Buy part |
| SET LEVER (W/SCREW) | 443/371 | 443/1-IWC 83 | Buy part |
| SET WHEEL LARGE | 450/248 | 8320/IWC 83 | Buy part |
| SET WHEEL SMALL | 450/249 | Buy part | |
| STAFF | 723/1046 | 723/1046 | Buy part |
| STAFF, REG/INCA | 100/798 | Buy part | |
| STEM, (.99MM) | 200/459F (use 401/173) | 200/459F | Buy part |
| STEM, GENUINE | 401/173 | 8317/IWC 83 | Buy part |
| WHEEL, CENTER | 201/277 | 8351/IWC 83 | Buy part |
| WHEEL, THIRD | 210/367 | 8354/IWC 83 | Buy part |
| WINDING PINION | 410/359 | 8318/IWC 83 | Buy part |
