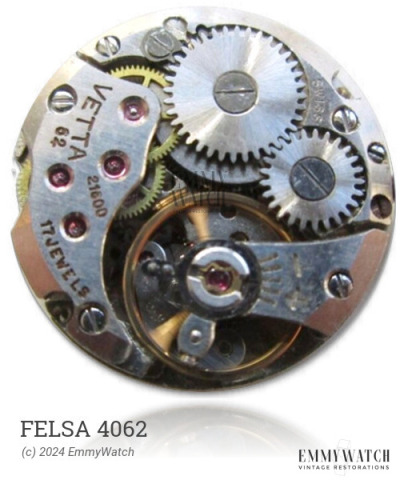

Felsa 4062
Ligne: 10.5'''
Jewels: 17
Lift Angle: 52°
Power Reserve: 58 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: ~1973
Diameter: 23.3 mm
Height: 4.3 mm
Hands: 1.30 x 0.85 x 0.20 mm
The Felsa 4062 watch movement features an escapement wheel with Kif-Duofix combined settings, adjustable weights on the balance spokes for precise adjustment, and an assembly for fine adjustment using a normal screwdriver. It is commonly known as the 1225. This movement offers a range of functions including manual winding, sweep seconds, an adjustable stud holder, KIF shock protection, and sweep seconds. It was commonly used around 1973.
The Felsa 4062 features the following functions:
- Adjustable Stud Holder
- KIF Shock Protection
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.100 x 320 x 9.0 mm | GR4123 | Manual | Buy mainspring |
| 1.50 x 0.095 x 320 x 9.0 mm | GR4113 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
Documents
Parts Listing
