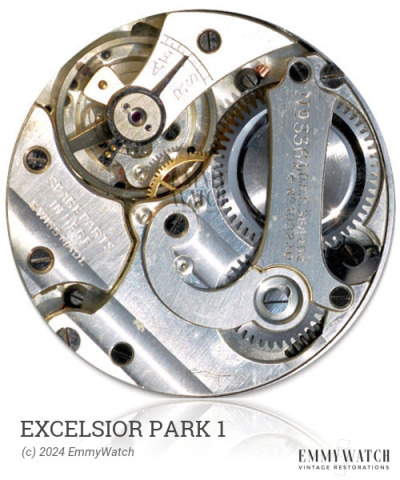

Excelsior Park 1
(Excelsior, EP)
Ligne: 19'''
Jewels: 15
Power Reserve: 30 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1898-1903
Diameter: 43.15 mm
Height: 7.0 mm
Hands: 1.85 x 0.60 / 0.26 mm
The Excelsior Park 1 watch movement was produced from 1898 to 1903, with a total of 1800 units manufactured. It features a hunter calibre design and is equipped with a bimetallic screw balance, including four adjustment screws. The movement utilizes a Breguet hairspring and incorporates patented big bearings for the crown- and ratchet wheel. It also incorporates a barrel with Geneva stopwork. Additional information can be found in the IWC 52 19'''H5 model. The functions of the Excelsior Park 1 movement include stem wind and lever set, as well as a sub second dial.
The Excelsior Park 1 features the following functions:
- Stem wind and lever set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
