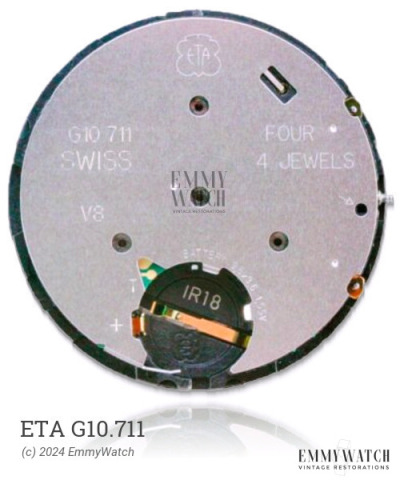

ETA G10.711
Ligne: 6.75 x 8'''
Frequency: 32768 hz
Type: Quartz
Period used: ~2010
Size: 15.3 x 18.2 mm
Height: 2.93 mm
Hands: 1.20 x 0.70 / 0.17 mm
The ETA G10.711 watch movement is a quartz controlled stepper motor movement with a sub second function. It was designed for use in watches during the period of approximately 2010.
The ETA G10.711 features the following functions:
- Quartz controlled stepper motor
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| STEM, TP 10 18.015MM | 065-477 | 401/1509 | Buy part |
| TECH SHEET | TS/MIY 1L40 | Buy part |
