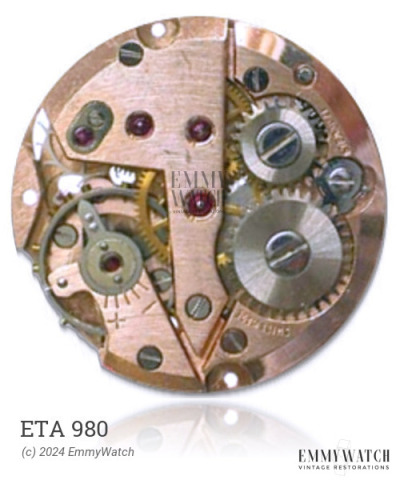

ETA 980
Ligne: 10.5'''
Jewels: 15
Power Reserve: 45 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 23.65 mm
Height: 4.0 mm
Hands: 1.40 x 0.80 / 0.18 mm
The ETA 980 watch movement is a manual wind movement with sub-second and sweep seconds functions. It is part of a series of movements, including the Venus 75, 78, 83, 84, 88, 89, 94, 97, 98, 103, 105, 106, 129, and 148. The specific differences between these movements are not known, but they are likely just catalog designations for varying bridge shapes.
The ETA 980 features the following functions:
- Manual Winding
- Sub Second
- Sweep Seconds
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.80 x 0.100 x 300 x 9.0 mm | GR5253 | Manual | Buy mainspring |
| 1.80 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
