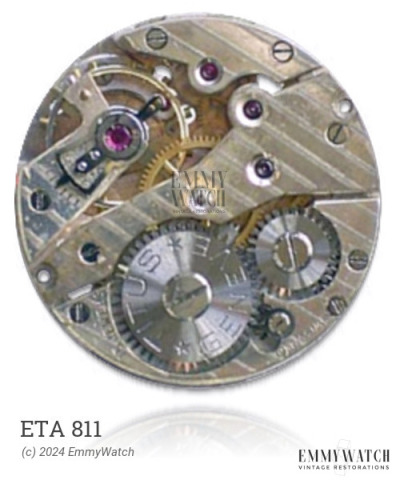

ETA 811
Ligne: 13.75'''
Jewels: 17
Power Reserve: 43 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 31.5 mm
Height: 6.0 mm
Hands: 1.85 x 1.30 x 0.27 / 0.27 x 0.20 mm
The ETA 811 watch movement is a manual-wind chronograph featuring a 60-second and 30-minute timer. It incorporates a cam-switched mechanism for the chronograph function. Additionally, the movement includes a sub-second display. Overall, the ETA 811 movement is designed specifically for accurate timekeeping and chronograph functionality.
The ETA 811 features the following functions:
- Manual-wind chronograph, 60s, 30min, cam switched
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.45 x 0.130 x 380 x 11.5 mm | GR4011 | Manual | Buy mainspring |
| 1.45 x 0.130 x 360 x 11.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| CLUTCH LEVER | 435/220 | /LAN 86 | Buy part |
| FLY BACK LEVER | X/998 | 8180/LAN 71 | Buy part |
| MINUTE RECORD JUMPER | X/999 | 8270/LAN 71 | Buy part |
| PALLET ARBOR | 72S/105P | 714/LAN 72 | Buy part |
| ROLLER 255X100X48 | 82S/118R | Buy part | |
| SET LEVER | 443/425 | Buy part | |
| STAFF | 100/1167 | Buy part | |
| STAFF, INCA | 100/1169 | Buy part | |
| STEM, TAP 6 | 200/1083F | Buy part | |
| WINDING PINION | 410/404 | /LAN 71 | Buy part |
