ETA 765
Ligne: 18'''
Jewels: 15
Power Reserve: 38 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1930
Diameter: 40.6 mm
Height: 5.7 mm
Hands: 1.94 x 1.09 / 0.26 mm

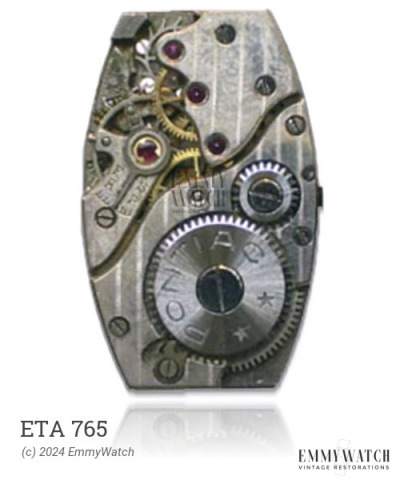

The ETA 765 is an open-face calibre watch movement which shares similarities with the 781 and 904 models. The specific differences between these models are currently unknown. The ETA 765 movement features functions such as stem winding and setting, as well as a sub-second display. This movement was commonly used during the approximate period of 1930.
The ETA 765 features the following functions:
- Stem wind and set
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 2.10 x 0.190 x 480 x 16.0 mm | Manual | Buy mainspring | |
| 2.10 x 0.185 x 460 x 15.0 mm | GR6066 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
