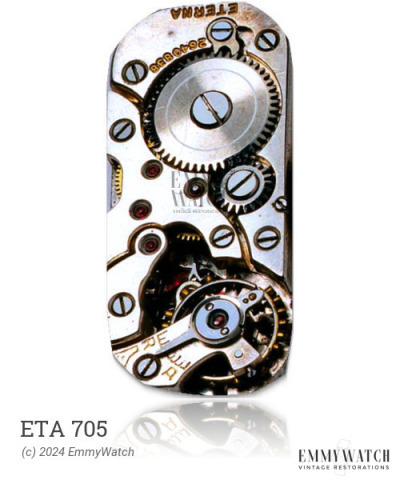

ETA 705
Ligne: 16.5'''
Jewels: 15
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1940
Diameter: 37.2 mm
Height: 4.9 mm
Hands: 2.00 x 1.15 / 0.27 mm
The ETA 705 is an open face calibre watch movement with varying bridge shapes. It is likely to have a left handed ratchet-wheel screw. Not much is known about the differences between the ETA 705 and other similar movements such as the 283, 291, 297, 309, 329, 337, and 499. The ETA 705 movement is designed for stem winding and setting, features a sub-second function, and was commonly used in watches around 1940.
The ETA 705 features the following functions:
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.90 x 0.170 x 460 x 15.0 mm | Manual | Buy mainspring | |
| 1.90 x 0.170 x 460 x 14.0 mm | GR5608 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
