ETA 406
Ligne: 16'''
Jewels: 7/15
Lift Angle: 48°
Power Reserve: 34 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1950
Diameter: 36 mm
Height: 5.1 mm
Hands: 1.40 x 0.60 / 0.24 mm

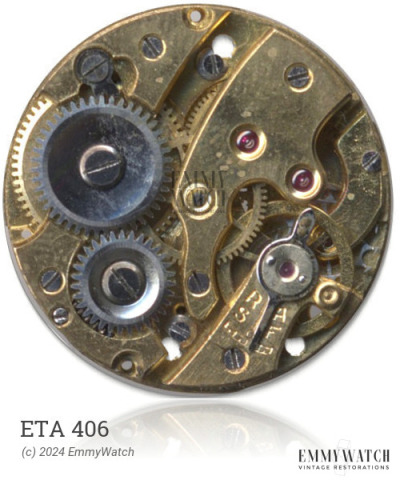

The ETA 406 watch movement is an open face calibre from approximately 1950. It features a unique crown mechanism with a rocker bar positioned between the plates. This movement offers stem winding and setting functionality, as well as a sub-second display.
The ETA 406 features the following functions:
- Stem wind and set
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.65 x 0.170 x 14.4 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
