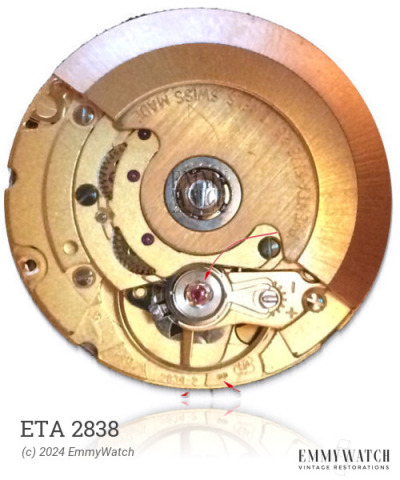

ETA 2838
Ligne: 11.5'''
Jewels: 17/21/25
Lift Angle: 52°
Power Reserve: 42 hrs
Frequency: 21600 vph
Type: Automatic
Period used: ~1973
Diameter: 26 mm
Height: 4.6 mm
Hands: 1.50 x 0.90 x 0.21 mm
The ETA 2838 watch movement features an indirectly driven minute hand, enabling a large balance and low profile. This movement is equipped with various functions, including automatic winding, sweep seconds, and a date function that can be quickly set by repeated pushing of the crown. Additionally, it incorporates a ball-bearing rotor mechanism. The ETA 2838 movement was widely used during the period around 1973.
The ETA 2838 features the following functions:
- Automatic Winding
- Ball-bearing Rotor
- Date: quickset by repeated pushing the crown
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.10 x 0.120 x 320 x 10.5 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
