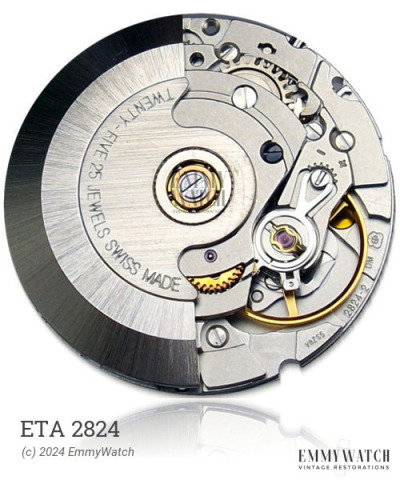

ETA 2824
Ligne: 11.5'''
Jewels: 25
Lift Angle: 52°
Power Reserve: 41 hrs
Frequency: 18000 vph
Type: Automatic
Period used: ~1970
Diameter: 26.3 mm
Height: 6.6 mm
Hands: 1.40 x 0.85 x 0.24 mm
Base: Marvin 580
The ETA 2824 watch movement is an automatic movement that features a sweep second hand and a date function that can be set by changing the time from 22:50 to 24:00. This movement was used primarily during the period of approximately 1970.
The ETA 2824 features the following functions:
- Automatic Winding
- Date: set by changing 22:50-24h
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| CANNON PINION, SS HT 2.68 | 245/937 | Buy part |
