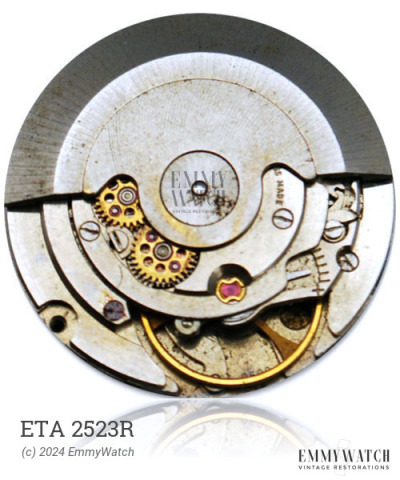

ETA 2523R
Ligne: 12.5'''
Jewels: 25
Power Reserve: 44 hrs
Frequency: 18000 vph
Type: Automatic
Period used: 1959-1956
Diameter: 28.5 mm
Height: 6.3 mm
Base: Rolex 1560
The ETA 2523R watch movement, utilized from 1959 to 1956, incorporates several notable features. These include a free Breguet hairspring with a protection bar and a balance with regulating screws. The movement offers various functions, including automatic winding, sweep seconds, a date display that can be set by changing the 21-24 hour indicators, and a 24-hour display.
The ETA 2523R features the following functions:
- 24h display
- Automatic Winding
- Date: set by changing 21-24h
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.120 x 11.0 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
