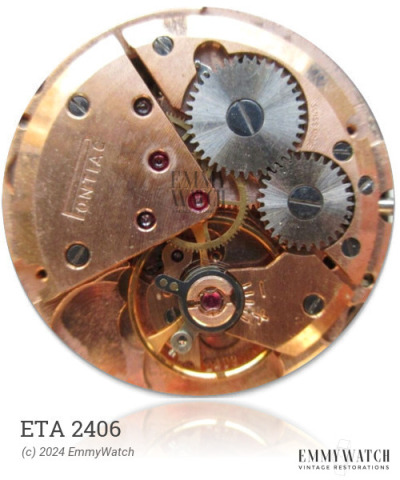

ETA 2406
Ligne: 8.75'''
Jewels: 17
Lift Angle: 50°
Power Reserve: 41 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1966-1974
Diameter: 19.4 mm
Height: 4.0 mm
Hands: 1.20 x 0.65 mm
The ETA 2406 watch movement, produced from 1966 to 1974, features a pin-lever escapement and a ratchet on the dial side. Its crown mechanism incorporates a rocker bar. This manual wind movement incorporates the functions of sub second and pin lever design.
The ETA 2406 features the following functions:
- Manual Winding
- Pin lever
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.100 x 225 x 8.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
