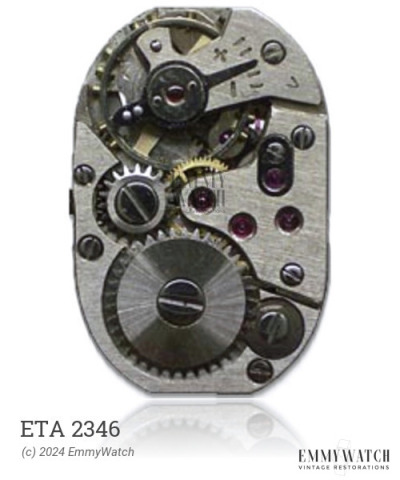

ETA 2346
Ligne: 11.5'''
Jewels: 17
Lift Angle: 52°
Power Reserve: 48 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1965
Diameter: 26 mm
Height: 3.6 mm
Hands: 1.50 x 0.90 x 0.21 mm
Base: ETA 2408
The ETA 2346 watch movement is a modified version of the ETA movement. It features manual winding, a sweep second hand, and a date function which is set by changing the 20-24 hour time. The movement incorporates KIF Shock Protection and includes a calendar. It was primarily used during the period of approximately 1965.
The ETA 2346 features the following functions:
- Calendar
- Date: set by changing 20-24h
- KIF Shock Protection
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.110 x 320 x 9.5 mm | GR3284 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| INSUL PLATE FOR #4087 | X/6086 | 4088/PUW 2001 | Buy part |
| MAINSPRING 1.30-.11-320 9,5 | MS-410M | GR 3284 | Buy part |
| PALLET ARBOR, C/C 40-90-11 | 72S/82P | 710/ETA 866 | Buy part |
| ROLLER, INCABLOC 180X80X36 | 82S/148R | 730/AUR 18 | Buy part |
| STAFF, HSP .50 INCABLOC | 100/2018 | Buy part | |
| STAFF, HSP .60 INCABLOC | 100/1376 | Buy part | |
| STEM | 200/1066F | Buy part | |
| STEM, FEMALE OA8.1 SH3.05 | 360/232 | 404/ETA 2390 | Buy part |
