Return To ShopWatch Database
ETA 2342
Ligne: 19'''
Jewels: 15
Power Reserve: 39 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 42.9 mm
Height: 4.2 mm
Hands: 1.85 x 1.00 / 0.28 mm

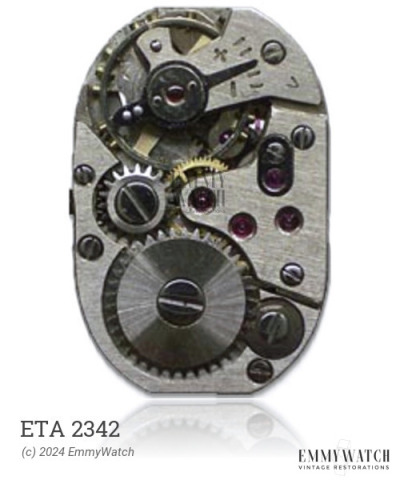

The ETA 2342 watch movement, part of the hunter calibre series, offers several options including a bimetallic screw balance and a Breguet hairspring. It shares several similarities with other movements in the series, such as the 41, 43, 45, and 49, with varying bridge layouts being the primary difference. The movement includes functions such as stem winding, setting, and a sub-second display.
The ETA 2342 features the following functions:
- Stem wind and set
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 2.30 x 0.205 x 500 x 16.0 mm | GR6446 | Manual | Buy mainspring |
| 1.50 x 0.210 x 440 x 16.0 mm | GR4362 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
