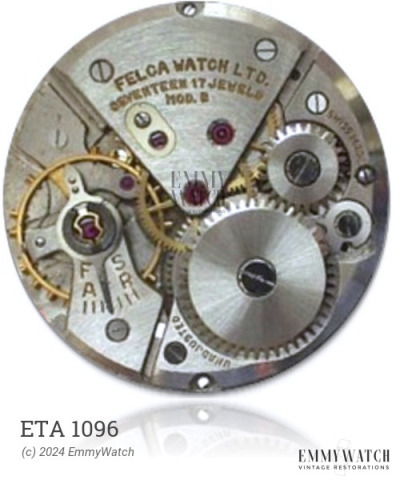

ETA 1096
Ligne: 18'''
Jewels: 15
Power Reserve: 36 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Diameter: 40.6 mm
Height: 5.2 mm
Hands: 1.85 x 1.00 / 0.20 mm
The ETA 1096 watch movement is a hunter calibre that features optional Beguet hairspring. It functions as a stem wind and set mechanism with a sub second display. The movement also includes a Right Setting feature. The ETA 1096 movement was primarily used around the year 1945.
The ETA 1096 features the following functions:
- Stem wind and set
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.90 x 0.170 x 460 x 14.0 mm | GR5608 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| PALLET ARBOR | 72S/130P | 714/ALP 355 | Buy part |
| ROLLER 290X120X54 | 82S/136R | Buy part | |
| STAFF, REG/INCA | 100/3B | Buy part | |
| STEM | 200/1052F | Buy part |
