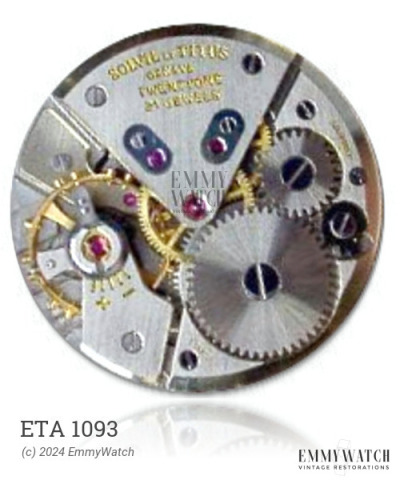

ETA 1093
Ligne: 10.5'''
Jewels: 17/21
Power Reserve: 37 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 23.3 mm
Height: 4.5 mm
Hands: 1.45 x 0.80 x 0.21 mm
Base: Henzi Pfaff 422
The ETA 1093 watch movement features a manual wind function, allowing for manual winding of the watch to provide power. It also includes a sweep second function, which is a continuous motion of the seconds hand instead of the traditional ticking motion.
The ETA 1093 features the following functions:
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.110 x 9.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| CLUTCH WHEEL | 407/897 | Buy part | |
| CROWN WHEEL RING | 422/261 | Buy part | |
| PALLET ARBOR | 72S/100P | 714/ENI 1120 | Buy part |
| ROLLER 205X90X42 | 82S/81R | Buy part | |
| STAFF, SHOCK | 100/1592 | Buy part | |
| STEM | 200/1411F | Buy part | |
| THIRD WHEEL | 210/608 | Buy part |
