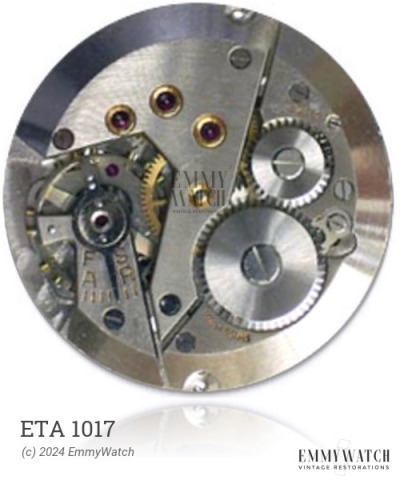

ETA 1017
Ligne: 7.75 x 11.5'''
Jewels: 15
Power Reserve: 52 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1940
Size: 17.6 x 25.6 mm
Height: 3.8 mm
Hands: 1.25 x 0.60 / 0.15 mm
The ETA 1017 is a manual wind mechanical watch movement with a sub second function. It was commonly used during the period ~1940.
The ETA 1017 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.110 x 320 x 9.5 mm | GR3699 | Manual | Buy mainspring |
| 1.30 x 0.100 x 320 x 9.0 mm | GR3255 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| HOUR WHEEL, HT 155 | 250/597 | 4574 | Buy part |
| MAINSPRING 1.40-.11-320 9,5 | MS-510M | GR 3699 | Buy part |
| PALLET ARBOR | 72S/23P | 714/AS 1744 | Buy part |
| ROLLER 175X80X36 | 82S/34R | 82S/34R | Buy part |
