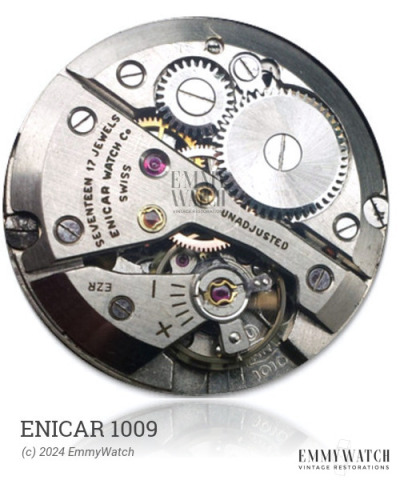

Enicar 1009
Ligne: 12'''
Jewels: 15/17
Lift Angle: 52°
Power Reserve: 45 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1955
Diameter: 27 mm
Height: 3.8 mm
Hands: 1.50 x 0.80 / 0.20 mm
The Enicar 1009 watch movement is a manual wind movement with sub seconds. The movement was in use around 1955. The Enicar 1009 shares similarities with other movements within the Fontainemelon family, such as the 26, 262, 265 through 268, 2617, and 2620, except for variances in bridge layouts.
The Enicar 1009 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.110 x 390 x 11.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
