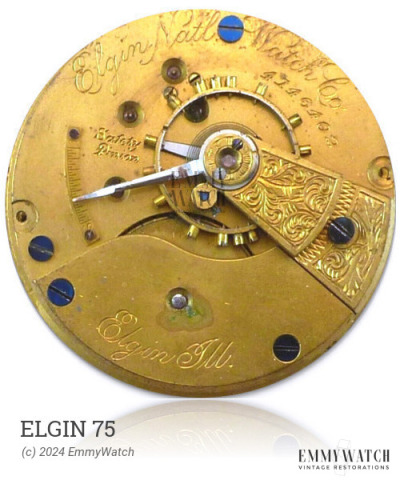

Elgin 75
Ligne: 12'''
Jewels: 15
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1941
Diameter: 26.5 mm
Height: 4.0 mm
Hands: 1.38 x 0.80 / 0.21 mm
The Elgin 75 is the first Eterna calibre designed for gents wrist watches, featuring both old and new mounting threads in its late samples. This mechanical watch movement offers manual winding functionality and includes sub-second and sweep seconds variations. The Elgin 75 movement was popularly used during the period around 1941.
The Elgin 75 features the following functions:
- Manual Winding
- Non-Sweep Seconds Variation
- Sub Second
- Sweep Seconds
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.110 x 320 x 9.5 mm | GR3699 | Manual | Buy mainspring |
| 1.40 x 0.110 x 300 x 9.0 mm | GR3698 | Manual | Buy mainspring |
| 1.35 x 0.130 x 300 x 10.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
