Elgin 730A
Ligne: 13'''
Jewels: 17/21
Power Reserve: 37 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1960
Diameter: 29.4 mm
Height: 3.2 mm
Hands: 1.50 x 0.80 / 0.21 mm

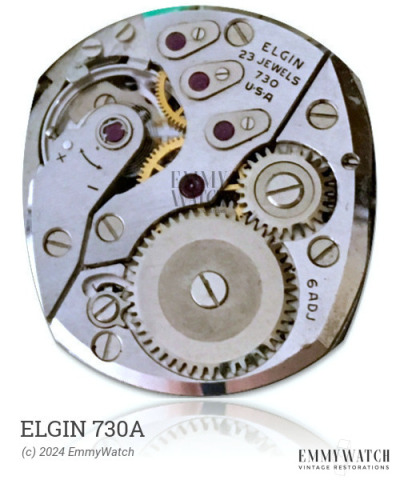

The Elgin 730A watch movement, also known as the Wehrmachtswerk (Germany Military Movement), shares similarities with other A.Schild movements such as the 1560, 1561, 1587, 1589, 1594, 1606, 1609, 1616, 1617, 1618, 1623, 1648, and 1697. It is a manual wind movement with sub-second functionality. This movement was typically utilized in watches produced around 1960.
The Elgin 730A features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.45 x 0.130 x 360 x 11.5 mm | Manual | Buy mainspring | |
| 1.40 x 0.135 x 340 x 11.0 mm | GR3758 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
