Elgin 647
Ligne: 8.75'''
Jewels: 17
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1950
Diameter: 19.7 mm
Height: 4.4 mm
Hands: 1.30 x 0.80 x 0.20 mm

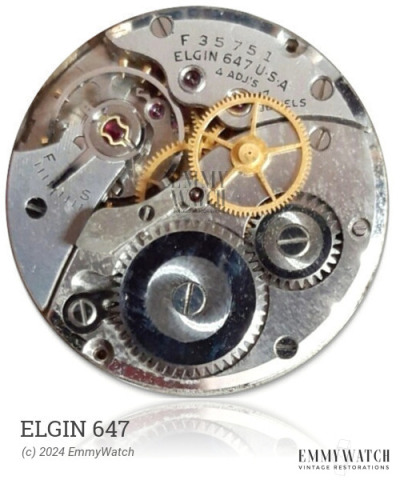

The Elgin 647 is a manual wind mechanical watch movement that features a sweep second function. It is similar to the Felsa 725 movement, although the exact differences between the two are not known. The Elgin 647 movement was commonly used in watches produced around the 1950s.
The Elgin 647 features the following functions:
- Manual Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.070 x 280 x 7.5 mm | Manual | Buy mainspring | |
| 1.40 x 0.075 x 260 x 7.0 mm | GR3591 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
