Elgin 498
Ligne: 6.5 x 11'''
Jewels: 15
Power Reserve: 34 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1926-1929
Size: 14.75 x 24.65 mm
Height: 3.6 mm
Hands: 1.16 x 0.60 mm
Base: Aurore 8

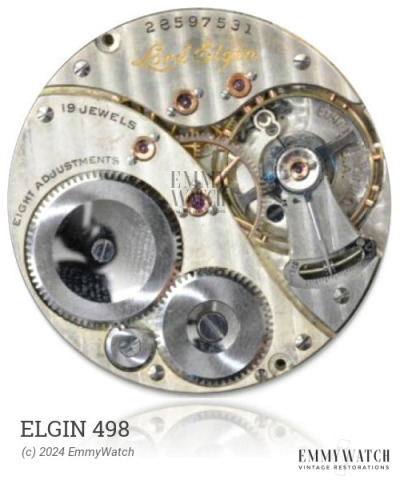

The Elgin 498 watch movement is a manual-winding movement that was utilized during the period of 1926-1929. It features a bimetallic screw balance and a Breguet hairspring.
The Elgin 498 features the following functions:
- Manual Winding
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.080 x 260 x 7.5 mm | GR2871 | Manual | Buy mainspring |
| 1.20 x 0.080 x 250 x 7.5 mm | Manual | Buy mainspring | |
| 1.20 x 0.090 x 240 x 7.5 mm | GR2894 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents

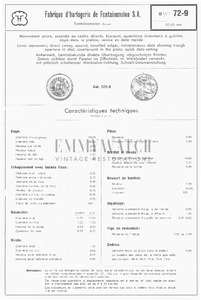

Parts Listing
