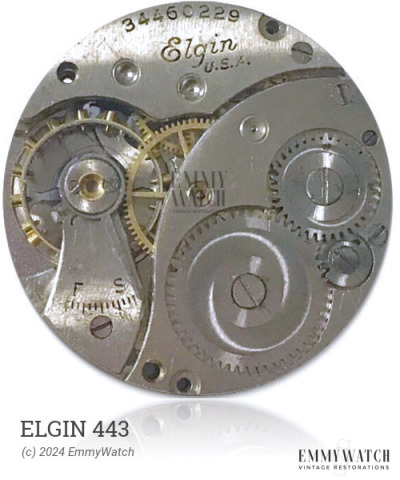

Elgin 443
Ligne: 11.5'''
Jewels: 17
Lift Angle: 52°
Power Reserve: 48 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1965
Diameter: 26 mm
Height: 4.5 mm
Hands: 1.30 x 0.90 x 0.21 mm
The Elgin 443 watch movement, also known as FHF-ST, belongs to a series of movements including the 96, 961, 962, 963, 964, 965, and 969. The specific differences between these movements are not known. The Elgin 443 movement features manual winding, a sweep second function, an adjustable stud holder, shock protection, and a sweep seconds hand. It was commonly used around the year 1965.
The Elgin 443 features the following functions:
- Adjustable Stud Holder
- Manual Winding
- Shock Protection
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 5340 | Ordinary/None | Buy staff |
| 5340 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.110 x 340 x 10.0 mm | GR4516 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More | |||
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
