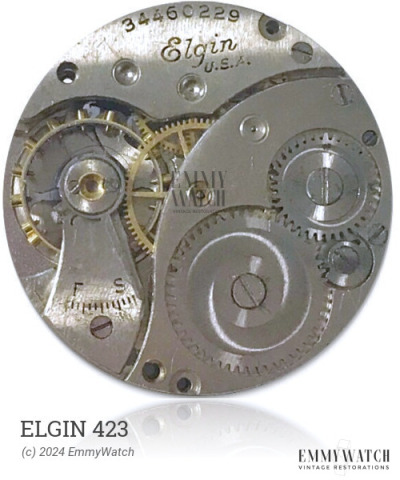

Elgin 423
Ligne: 12'''
Jewels: 15
Lift Angle: 42°
Power Reserve: 30 hrs
Frequency: 17280 vph
Type: Manual Wind
Period used: ~1960
Diameter: 28.05 mm
Hands: 1.90 x 1.10 x 0.24 mm
The Elgin 423 watch movement features a pin-lever escapement and an indirect minute hand friction clutch on the barrel. It is distinguished by the implementation of a single component to replace the setting-lever spring, yoke, and yoke spring. Some early samples of this movement also include a pointed staff. The movement offers manual winding and a date function. It was commonly used in the period around 1960.
The Elgin 423 features the following functions:
- Date
- Manual Winding
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.140 x 13.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
