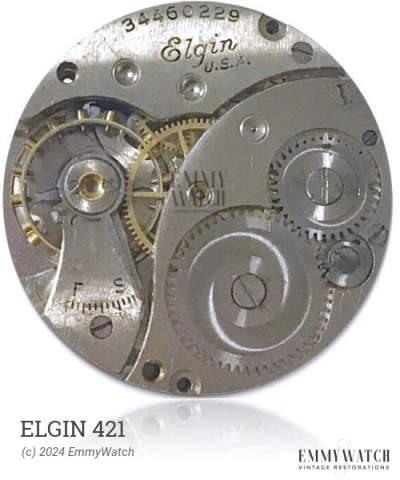

Elgin 421
Ligne: 5.75 x 8.5'''
Jewels: 11/15
Power Reserve: 37 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1935
Size: 12.85 x 19.25 mm
Height: 3.5 mm
Hands: 1.00 x 0.58 mm
The Elgin 421 watch movement is a manual wind mechanical movement that was commonly used around 1935. The specific differences between the Urofa 54 and Elgin 421 are currently unknown.
The Elgin 421 features the following functions:
- Manual Winding
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 2430 | Ordinary/None | Buy staff |
| 18 | Ordinary/None | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.10 x 0.080 x 240 x 7.0 mm | GR2579 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
