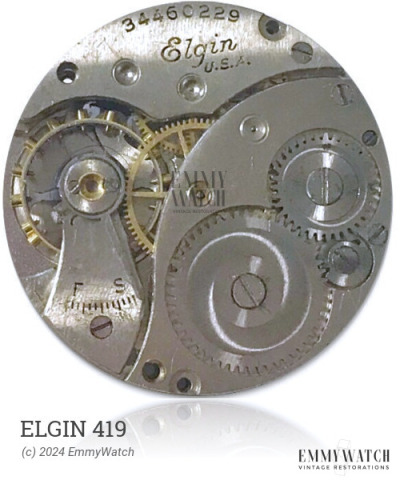

Elgin 419
Ligne: 10.5'''
Jewels: 15
Power Reserve: 36 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1925
Diameter: 23.75 mm
Height: 4.3 mm
Hands: 1.30 x 0.80 / 0.24 mm
The Elgin 419 is a mechanical watch movement that was likely produced around 1925. It belongs to a group of movements with various bridge layouts, some of which may be labeled as AS 340. There are no known differences between the Elgin 419 and other movements in the same group, such as the 302, 303, 311, 313, 324, and many others. The key functions of the Elgin 419 movement include manual winding and a sub-second display.
The Elgin 419 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring | |
| 1.50 x 0.105 x 280 x 9.0 mm | GR41332 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
