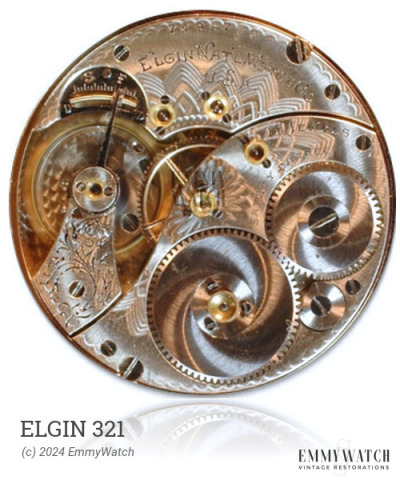

Elgin 321
Ligne: 13'''
Jewels: 17/21
Power Reserve: 37 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1960
Diameter: 29.4 mm
Height: 3.2 mm
Hands: 1.50 x 0.80 / 0.21 mm
The Elgin 321 is a manual wind watch movement with sub second functionality. It falls within the set of movements that include 1560, 1561, 1587, 1589, 1594, 1606, 1609, 1616, 1617, 1618, 1623, 1648, and 1697, with specific differences among them that are currently unknown. The Elgin 321 was commonly used during the period of approximately 1960.
The Elgin 321 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.45 x 0.130 x 360 x 11.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
