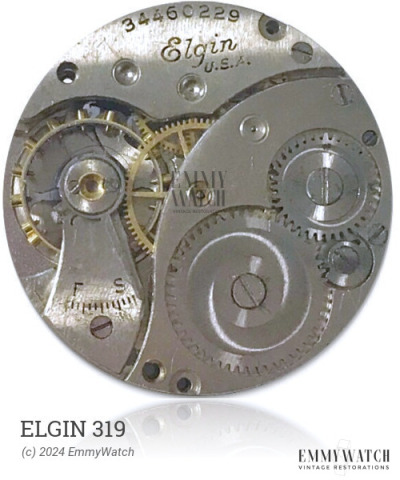

Elgin 319
Ligne: 11.5'''
Jewels: 17
Power Reserve: 48 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1963-
Diameter: 26 mm
Height: 3.0 mm
Hands: 1.30 x 0.80 mm
Base: Favre Leuba 251
The Elgin 319 watch movement, introduced in 1963, features a balance bridge and incorporates two parallel- coupled barrels. It employs manual winding, and further details about its winding mechanism can be found in the Favre-Leuba 253 watch movement.
The Elgin 319 features the following functions:
- Manual Winding
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.55 x 0.065 x 210 x 6.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| SET BRIDGE | 445/982 | Buy part | |
| STEM, USE 401/552 | 200/1516F | Buy part |
