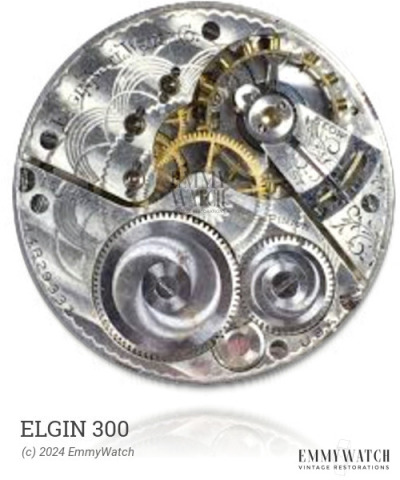

Elgin 300
Ligne: 10.5'''
Jewels: 17/21
Power Reserve: 47 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 23.7 mm
Height: 3.6 mm
Hands: 1.50 x 0.90 x 0.21 mm
Base: ETA 2390
The Elgin 300 watch movement features the escapement Helvetia and has an early fixed, which is later replaced with a mobile stud carrier. This movement offers manual winding and includes functions such as a sweep second hand and Incabloc Shock Protection.
The Elgin 300 features the following functions:
- Incabloc Shock Protection
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.110 x 320 x 10.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
