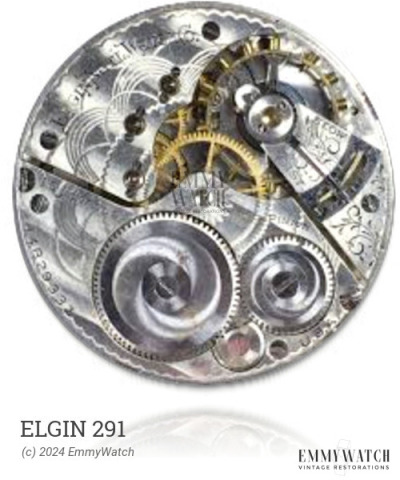

Elgin 291
Ligne: 8.75 x 12'''
Jewels: 14/15
Power Reserve: 41 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1960
Size: 19.8 x 26.9 mm
Height: 3.5 mm
Hands: 1.23 x 0.67 / 0.18 mm
The Elgin 291 watch movement is a manual wind movement that features a sub second and a timer function. It utilizes a steel impulse pin and consists of 14 jewels. The movement is part of the later stop-watch calibre with the same designation. Not much is known about the differences between the Elgin 291, 38, and 101 movements. The movement was commonly used around the 1960s.
The Elgin 291 features the following functions:
- Manual Winding
- Sub Second
- Timer Function
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 2722 | Ordinary/None | Buy staff |
| 3097 | Ordinary/None | Buy staff |
| 4285 | Ordinary/None | Buy staff |
| 5194 | Ordinary/None | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.90 x 0.190 x 500 x 15.5 mm | GR5644 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
