Elgin 264
Ligne: 6'''
Jewels: 17
Lift Angle: 52°
Power Reserve: 35 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 13.75 mm
Height: 3.15 mm
Hands: 1.00 x 0.50 mm
Base: Felsa 21

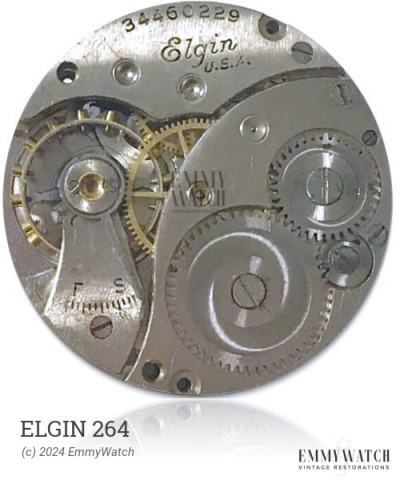

The Elgin 264 mechanical watch movement is characterized by its early fixed or later mobile stud carrier. The specific differences between the Felsa 21 and Elgin 264 movements are not known. This movement is primarily designed for manual winding.
The Elgin 264 features the following functions:
- Manual Winding
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.35 x 0.060 x 160 x 5.5 mm | GR3460 | Manual | Buy mainspring |
| 1.35 x 0.060 x 160 x 5.0 mm | GR3460 | Manual | Buy mainspring |
| 1.35 x 0.060 x 145 x 5.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
