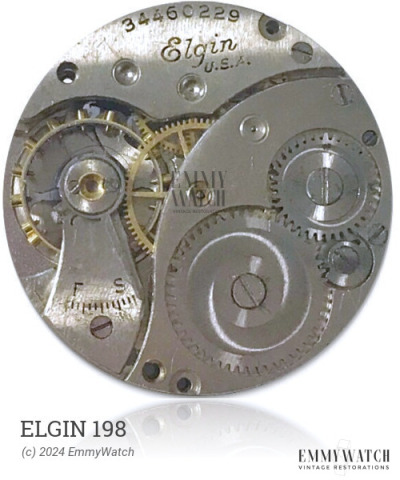

Elgin 198
Ligne: 10.5'''
Jewels: 15
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 23.7 mm
Height: 3.85 mm
Hands: 1.40 x 0.80 / 0.22 mm
The Elgin 198 watch movement is part of a series of movements that includes the 810 through 815, 818, 822, 823, 897, and 899. The specific differences between these movements are not known. The Elgin 198 movement features manual winding and sub second functions.
The Elgin 198 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.100 x 315 x 9.5 mm | Manual | Buy mainspring | |
| 1.60 x 0.110 x 280 x 8.5 mm | GR4513 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
