Elgin 162
Ligne: 12.5'''
Jewels: 17
Lift Angle: 46°
Power Reserve: 37 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1955
Diameter: 28.85 mm
Height: 4.5 mm
Hands: 1.50 x 0.90 x 0.18 mm

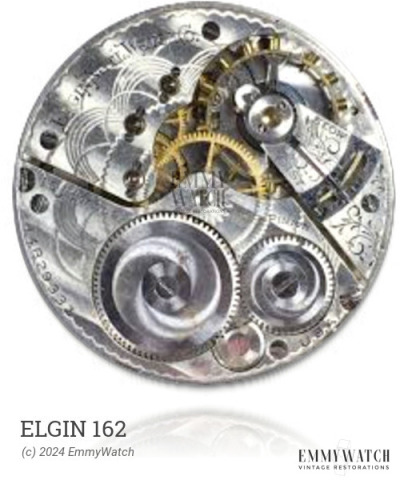

The Elgin 162 watch movement is a manual wind mechanical movement introduced around 1955. It is available in both sweep seconds and non-sweep seconds variations. The movement features functions such as sweep second hand movement, manual winding capability, and a date function that can be set within a range of +/- 24 hours. All variants of this movement are signed with the designation 022-18.
The Elgin 162 features the following functions:
- Date: set by +/- 24h
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 2786 | Ordinary/None | Buy staff |
| 3300 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.140 x 330 x 11.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
