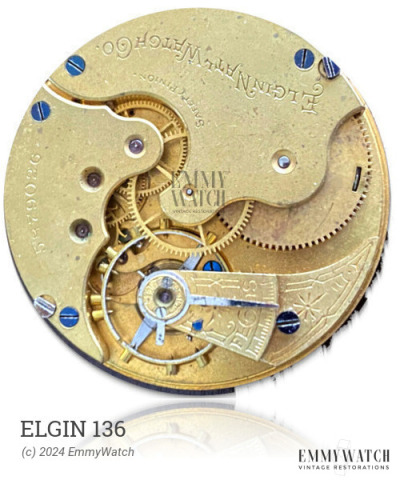

Elgin 136
Ligne: 10.5'''
Jewels: 17/21
Power Reserve: 45 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1955
Diameter: 23.7 mm
Height: 5.15 mm
Hands: 1.40 x 0.80 x 0.18 mm
Base: Otero 44
The Elgin 136 watch movement features a ratchet on the dial side and a crown mechanism with a rocker bar. It is based on the signature 44-like base calibre. This manual wind movement includes several functions, such as sweep seconds, date-setting by changing 22:30-24h, and a period of usage around 1955.
The Elgin 136 features the following functions:
- Date: set by changing 22:30-24h
- Manual Winding
- Sweep Seconds
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 4136 | Incabloc | Buy staff |
| 4136 | Kif | Buy staff |
| 4136 | Monorex | Buy staff |
| 4136 | Unishock | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.090 x 315 x 9.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| RATCHET WHEEL | 415/1073 | Buy part | |
| STAFF, REG/SHOCK | 100/1517 | Buy part | |
| STEM | 200/1222 | Buy part | |
| WINDING PINION | 410/1073 | Buy part |
