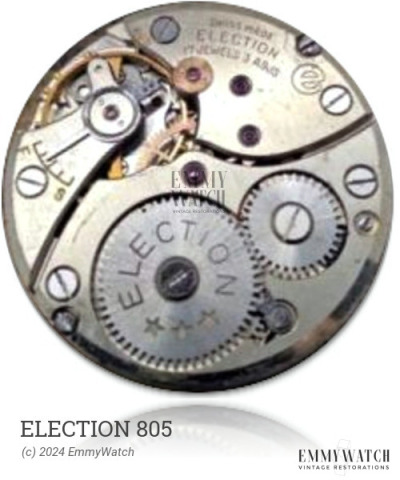

Election 805
Ligne: 11.5'''
Jewels: 7/17
Lift Angle: 46°
Power Reserve: 46 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1965
Diameter: 26 mm
Height: 4.6 mm
Hands: 1.30 x 0.80 x 0.21 mm
The Election 805 watch movement features a pin-lever escapement and incorporates a ratchet mechanism on the dial side along with a crown mechanism equipped with a rocker bar. It operates using manual winding and includes functions such as sweep seconds and KIF Shock Protection. This movement was commonly used around the period of 1965.
The Election 805 features the following functions:
- KIF Shock Protection
- Manual Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.120 x 320 x 10.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
