Dugena 999
Jewels: 17
Power Reserve: 46 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1912-1923
Diameter: 41.45 mm
Height: 4.95 mm
Hands: 1.55 x 0.95 / 0.16 mm

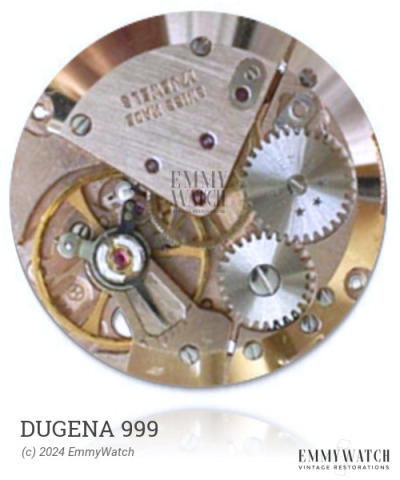

The Dugena 999 watch movement, produced from 1912 to 1923, boasts a total production of 43,099 units. The movement features an open face calibre, sunk gold settings, and a negative stem mechanism. It is equipped with a bimetallic screw balance accompanied by four adjustment screws, and a Breguet hairspring. The functions of this movement include stem winding and setting, a sub second hand, and an open face design. It should be noted that the Dugena 999 is an American made movement.
The Dugena 999 features the following functions:
- American Made
- Open Face Calibre
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 1209 | Ordinary/None | Buy staff |
| 1221 | Ordinary/None | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.175 x 540 x 16.0 mm | MB | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
