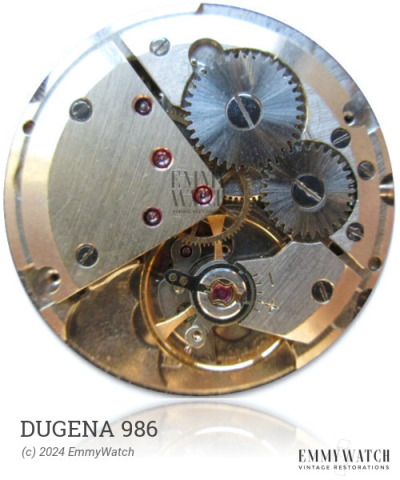

Dugena 986
Ligne: 11.5'''
Jewels: 17
Lift Angle: 52°
Power Reserve: 50 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: 1970-1974
Diameter: 26 mm
Height: 6.9 mm
Hands: 2.10 x 1.30 x 0.90 x 0.22 mm
Base: A. Schild 1931
The Dugena 986 watch movement was produced during the period of 1970-1974. It offered the option of an AS2 lever regulator. The movement encompassed several functions including a manual-wind alarm, sweep second hand, and a date display that could be set by changing 22-24 hours.
The Dugena 986 features the following functions:
- Date: set by changing 22-24h
- Manual-wind alarm
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
