Dugena 889
Ligne: 12'''
Jewels: 15
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1950
Diameter: 26.6 mm
Height: 3.8 mm
Hands: 1.50 x 0.80 / 0.20 mm

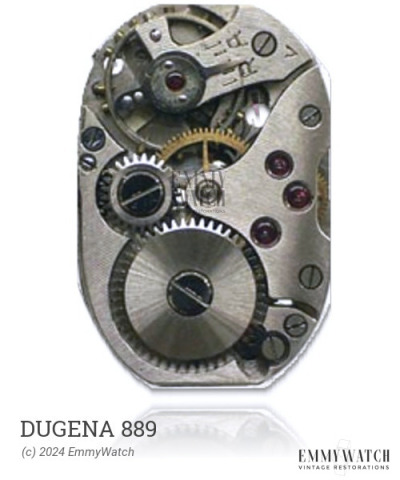

The Dugena 889 watch movement, introduced around 1950, is a manual wind movement with a sub second function. It shares certain similarities with other A. Schild movements such as the 1203, 1207, 1266, 1267, 1311, and 1314, although specific differences between these models are not known.
The Dugena 889 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.75 x 0.110 x 360 x 10.5 mm | GR5158 | Manual | Buy mainspring |
| 1.70 x 0.120 x 320 x 10.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
