Dugena 819
Ligne: 5.5 x 7'''
Jewels: 15/17
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Size: 12.2 x 15.85 mm
Height: 3.5 mm
Hands: 1.00 x 0.55 mm

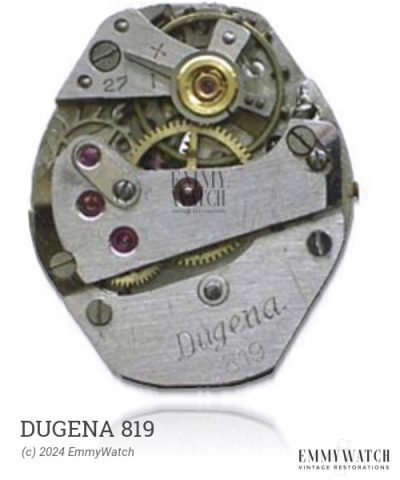

The Dugena 819 is a mechanical watch movement utilized for manual winding. It was commonly employed during the approximate period of 1945. No further information is currently available regarding the specific distinctions or similarities between the Dugena 819 and the other mentioned watch movements, including the 976, 986, 990, 1022, 1057, 1079, 1246, 1273, 1406, 1467, 1482.
The Dugena 819 features the following functions:
- Manual Winding
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.065 x 220 x 6.0 mm | GR3568 | Manual | Buy mainspring |
| 1.40 x 0.060 x 210 x 6.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
